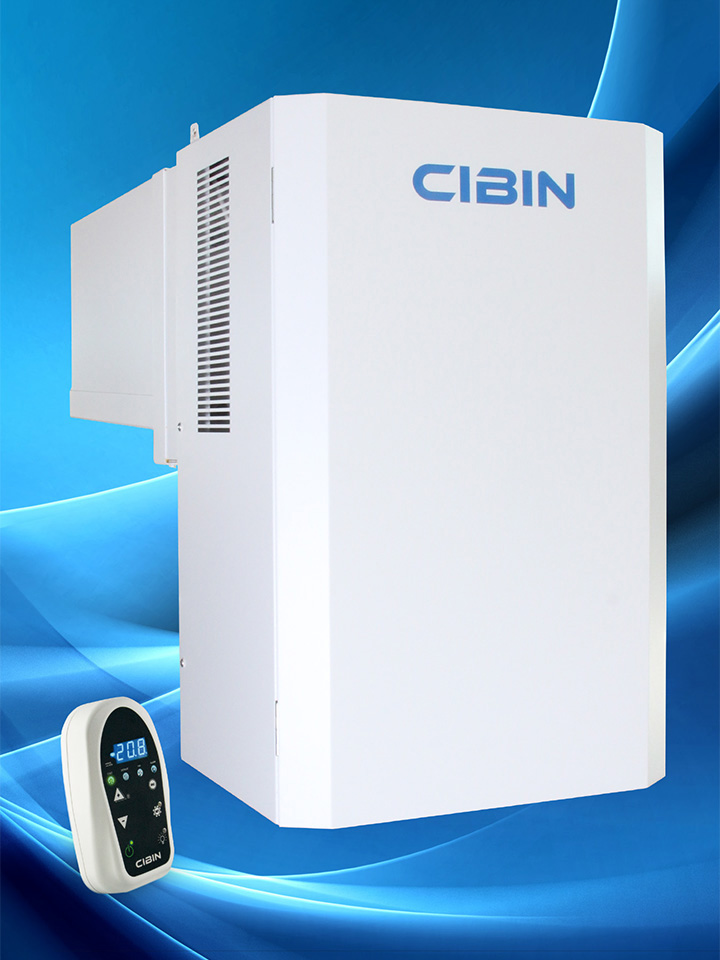

NORCA is a refrigerating system for slot-in installation. Its monobloc structure makes it possible to create a ready-to-use system that is simple to install and use.



Icon_cataphoresis_painting_cibin

Technical characteristics

Standard equipment
    • Hermetic compressor*
    • Semi-hermetic compressor*
    • Anti-vibration compressor brackets
    • Crankcase resistance *
    • Air condensation
    • Galvanized powder coated sheet steel body
    • Evaporator with cataphoretically painting
    • Evaporator body of aluminium-magnesium alloy
    • Evaporator of copper pipes and aluminium fins
    • Condenser of copper pipes and aluminium fins
    • Automatic restarting low pressure switch
    • Automatic restarting high pressure switch to weld
    • Compressor timer management to avoid too near start-ups
    • Axial fan
    • Condenser fans protection
    • Thermic compressor protection
    • General magnete-thermal protection *
    • Suction pressure relief valve (only for low temperature models)
    • Dehydrator filter
    • Suction-side liquid separator
    • Defrost hot gas solenoid valve
    • Sight glass
    • Automatic hot gas defrosting
    • High and low pressure ¼” pipe plugs
    • Condensation outlet siphon
    • Condensation outlet resistor (only for low temperature models)
    • Cold room ceiling light
    • Ambient temperature probe
    • Defrosting end temperature probe
    • Condensation control temperature probe
    • Connecting cable for door resistor with protection fuse 4 A (only for low temperatures models)
    • Connecting cable for door micro switch to turn off the system and to turn on the light at door opening
    • Free relay for transfer alarm signals

Remote control with:

  • Digital display with temperature indicator at one decimal
  • On/Off switch
  • Cold room light switch
  • Running state display: cold – defrosting – evaporator fans – alarm status
  • Programming keys
  • Alarm display
  • Manual defrosting key
  • High temperature alarm
  • Low temperature alarm
  • High temperature alarm dirty condenser
  • Low temperature alarm condenser
  • Open door alarm
  • High pressure alarm
  • Low pressure alarm
  • Defrosting end alarm because of time-out
  • Alarm ambient temperature probe defect
  • Alarm defrosting end temperature probe defect
  • Alarm condensation control temperature probe defect
  • Timer emergency running in case of these events:
    – Ambient temperature probe defect
    – Defrosting end temperature probe defect
    – Condensation control temperature probe defect
    – Cold room door open (if there is door micro switch)
  • Pre-set connection for Frigotel® supervision
Optional:
    • Door micro switch
    • Water condensation with liquid receiver, pressure control valve, pipe connection ½”
    • Different voltage
    • Tropicalised version
    • Condenser fan speed regulator
    • Voltage display for machine stop in case of incorrect power supply
    • Long distance option for the remote control at distances longer than 15 m
    • Acoustic siren with flashing to indicate the alarm state
    • Switchboard for the management of two machines in the same cold room
    • Another remote control to use as slave
    • Electronic module for the connection to Frigotel® supervision system
    • Condenser with cataphoretically painting

* depending on model

Destined use
Destined use, intended and unintended uses
Cibin’s refrigerating equipment is classed as food and agricultural machinery (MACHINES DIRECTIVE 2006/42/EC), destined for the treatment of food products.
The machine is designed for the conservation of foods and/or “fresh” products at temperatures indicated in annexes.
It has been designed to work in ambient temperatures from +16°C to +43°C (class T).
It has been designed to maintain a set temperature in a refrigerated cold room suitable for such uses.
The machine is not designed for use in cold rooms situated outside.
The machine is not designed for installation and use in an environment where there is risk of explosion.
Any use other than that permitted shall be considered improper, and in this case the Manufacturer will decline all liability.
The machine is not designed for the conservation of products, which produce corrosive substances.

Models

How to read the nameplate
Volume calculation conditions

icona-scheda-passwordIn order to consult manual and data sheets, you should require the password

R452A

R452A – 50Hz – TN

Code Model CV Power supply

V/ph/Hz

 Capacity W*

Tc 0°C / Ta + 32°C

 Data sheet Manual
999909701 NORCA 06125 N 0.5 230/1+N/50 983
999909702 NORCA 07125 N 0.75 230/1+N/50 1149
999909703 NORCA 09125 N 1 230/1+N/50 1260
999909704 NORCA 11225 N 1 230/1+N/50 1989
999909705 NORCA 11225 N 1 400/3+N/50 1989
999909706 NORCA 13225 N 1.2 230/1+N/50 2146
999909707 NORCA 13225 N 1.2 400/3+N/50 2146
999909708 NORCA 15225 N 1.5 230/1+N/50 2522
999909709 NORCA 15225 N 1.5 400/3+N/50 2522
999909710 NORCA 19325 N 1.9 230/1+N/50 2934
999909711 NORCA 19325 N 1.9 400/3+N/50 2934
999909712 NORCA 24325 N 2.4 230/1+N/50 3307
999909713 NORCA 24325 N 2.4 400/3+N/50 3307
999909714 NORCA 30235 N 3.0 400/3+N/50 4968
999909715 NORCA 35235 N 3.4 400/3+N/50 6301

R452A – 50Hz – BT

Code Model CV Power supply

V/ph/Hz

 Capacity W*

Tc – 20°C / Ta + 32°C

 Data sheet Manual
999909716 NORCA 12125 B 1.2 230/1+N/50 790
999909717 NORCA 17125 B 1.7 230/1+N/50 883
999909718 NORCA 19225 B 1.9 230/1+N/50 1533
999909719 NORCA 19225 B 1.9 400/3+N/50 1533
999909720 NORCA 24225 B 2.4 230/1+N/50 1892
999909721 NORCA 24225 B 2.4 400/3+N/50 1892
999909722 NORCA 32325 B 3.4 400/3+N/50 2681
999909723 NORCA 35325 B 3.7 400/3+N/50 2700
999909724 NORCA 40235 B 4.0 400/3+N/50 5167
999909725 NORCA 45235 B 4.2 400/3+N/50 4280
999909726 NORCA 50235 B 5.0 400/3+N/50 5834

R452A – 60Hz – TN

Code Model CV Power supply

V/ph/Hz

 Capacity W*

Tc 0°C / Ta + 32°C

 Data sheet Manual
  NORCA 06125 N 0.5 230/1+N/60 –
  NORCA 07125 N 0.75 230/1+N/60 –
  NORCA 13225 N 1.2 400/3+N/60 –
  NORCA 15225 N 1.5 400/3+N/60 –
  NORCA 19325 N 1.9 400/3+N/60 –
  NORCA 24325 N 2.4 400/3+N/60 –

R452A – 60Hz – BT

Code Model CV Power supply

V/ph/Hz

 Capacity W*

Tc – 20°C / Ta + 32°C

 Data sheet Manual
  NORCA 17125 B 1.7 230/1+N/60 –
  NORCA 19225 B 1.9 400/3+N/60 –
  NORCA 32325 B 3.4 400/3+N/60 –
  NORCA 45235 B 4.2 400/3+N/60 –

R404A

R404A – 50Hz – TN

Code Model CV Power supply

V/ph/Hz

 Capacity W*

Tc 0°C / Ta + 32°C

 Data sheet Manual
999908701 NORCA 06125 N 0.5 230/1+N/50 983
999908702 NORCA 07125 N 0.75 230/1+N/50 1149
999908703 NORCA 09125 N 1 230/1+N/50 1260
999908704 NORCA 11225 N 1 230/1+N/50 1989
999908705 NORCA 11225 N 1 400/3+N/50 1989
999908707 NORCA 13225 N 1.2 230/1+N/50 2146
999908709 NORCA 13225 N 1.2 400/3+N/50 2146
999908711 NORCA 15225 N 1.5 230/1+N/50 2522
999908708 NORCA 15225 N 1.5 400/3+N/50 2522
999908713 NORCA 19325 N 1.9 230/1+N/50 2934
999908710 NORCA 19325 N 1.9 400/3+N/50 2934
999908714 NORCA 24325 N 2.4 230/1+N/50 3307
999908712 NORCA 24325 N 2.4 400/3+N/50 3307
999908728 NORCA 30235 N 3.0 400/3+N/50 4968
999908729 NORCA 35235 N 3.4 400/3+N/50 6301

R404A – 50Hz – BT

Code Model CV Power supply

V/ph/Hz

 Capacity W*

Tc – 20°C / Ta + 32°C

 Data sheet Manual
999908716 NORCA 12125 B 1.2 230/1+N/50 790
999908719 NORCA 17125 B 1.7 230/1+N/50 883
999908717 NORCA 19225 B 1.9 230/1+N/50 1533
999908720 NORCA 19225 B 1.9 400/3+N/50 1533
999908721 NORCA 24225 B 2.4 230/1+N/50 1892
999908718 NORCA 24225 B 2.4 400/3+N/50 1892
999908724 NORCA 32325 B 3.4 400/3+N/50 2681
999908722 NORCA 35325 B 3.7 400/3+N/50 2700
999908725 NORCA 40235 B 4.0 400/3+N/50 5167
999908726 NORCA 45235 B 4.2 400/3+N/50 4280
999908727 NORCA 50235 B 5.0 400/3+N/50 5834

R404A – 60Hz – TN

Code Model CV Power supply

V/ph/Hz

 Capacity W*

Tc 0°C / Ta + 32°C

 Data sheet Manual
999908731 NORCA 06125 N 0.5 230/1+N/60 –
999908706 NORCA 07125 N 0.75 230/1+N/60 –
  NORCA 13225 N 1.2 400/3+N/60 –
  NORCA 15225 N 1.5 400/3+N/60 –
  NORCA 19325 N 1.9 400/3+N/60 –
  NORCA 24325 N 2.4 400/3+N/60 –

R404A – 60Hz – BT

Code Model CV Power supply

V/ph/Hz

 Capacity W*

Tc – 20°C / Ta + 32°C

 Data sheet Manual
  NORCA 17125 B 1.7 230/1+N/60 –
  NORCA 19225 B 1.9 400/3+N/60 –
  NORCA 32325 B 3.4 400/3+N/60 –
  NORCA 45235 B 4.2 400/3+N/60 –

* Max ambient temperature: + 43°C

Ta: Ambient temperature
Tc: Cold room temperature
